series engine

F6L913 model engine made in china 913 series engine

F6L913
Benefits: Quick refunds on orders under US $1,000
Fuel Diesel
Model Number F6L913
Purchase details
Shipping: Contact supplier to negotiate shipping details
Enjoy On-time Dispatch Guarantee
Returns & Refunds Eligible for refunds within 30 days of receiving products.
Quantity:
Contact Now
add to cart

Key attributes

Industry-specific attributes

DisplacementF6L913
Emission StandardOther
Power24KW, 28KW



Other attributes

Applicable IndustriesManufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Place of OriginChina
Weight420kg
WeightUnavailable
Rated power/speed24KW/1500rpm; 28kw/1800rpm ....
Machinery Test ReportProvided
Video outgoing-inspectionProvided
Marketing TypeOrdinary Product
Warranty of core components1 Year
Core ComponentsOther, Engine
Key Selling PointsCompetitive Price
ConditionNew
Stroke4 Stroke
StrokeMulti-cylinder
Cold StyleAir-cooled
StartElectric Start
Dimension(L*W*H)
1400*800*1040
Displacement6.128 Liters
Engine type
Vertical
engine continuous power1500rpm: 51kw 1800rpm: 65kw
20ft loading qty22sets
packing methodplywood cases
CertificationISO



Packaging & delivery

Package Type:plywood case packing 22sets in one container


Supply Ability

Supply Ability100 Set/Sets per Week


Product details

Product Description
DEUTZ Air-cooled diesel engine is the product after importing DEUTZ/KHD German product and manufactured with production license by Chinese DEUTZ plant .This serial engine is lined up straightly, The power is 14KW-440KW.Rotation speed 1500-2800r/min combustion style is spurting straightly or vertex flow (low pollution). The structure is rationalize, Operation is simple. They can used for engineering mechanic, agricultural mechanic, generating unit ,and ship power.
SPECIFICATIONS:

Air-Cooled Diesel Engine For Construction Equipment

Numbers of Cylinder: 6

Induction System: Naturally aspirated

Type: Vertical 4-Stroke air-cooled direct injection

Combustion System: Direct injection

Displacement(L): 6.128

Bore X Stroke(mm): 102X125

Compression Ratio: 17:1

Air-Cooled Diesel Engine For Generator Sets

Governing Machine Governor: 5%

Electronic Governor: 1%

Engine Continue Power(kw) 1500rpm: 51

1800rpm: 65

Engine Maximum Power(kw) 1500rpm: 54

1800rpm: 68

Noise dB(a) 1500rpm: 105

1800rpm: 105

Electric System: 12V/24V

Overall Dimension: 1400×800×1040

Net Weight(kg): 420

Ref.QTY/20'FCL(SETS): 22


Main Features

1.Good economical efficiency: this type of air-cooled diesel engine adopts advanced technical index with the power per liter of 21.23~26.20Ps/L, specific weight of 3.42~2.94kg/Ps, and the minimum specific fuel consumption of 212g/kW.h (156g/Ps.h)

2. High reliability, long operating life: it is proved that air-cooled diesel engine has lower abrasion loss than water-cooled diesel engine. The abrasion loss of air-cooled diesel engine is just 50% of that of water-cooled diesel engine, and the abrasion loss of piston rings in air-cooled diesel engine is also 50% of that in water-cooled diesel engine.

3.Strong adaptability: Air-cooled diesel engine can be well started and work even the temperature is 40℃ below zero, without freezing the cylinder block and without applying anti-freeze solution.

4. Easy maintenance: without installing a set of parts same as that in a water cooling system, air-cooled diesel engine boasts of easy maintenance and lower maintenance fee.

5. Convenient to use: Air-cooled diesel engine is free from the load of adding and discharging cooling water and avoiding the accidents of freezing the cylinder block, cylinder cover and radiator etc.

912/913 series Standard Configuration:

1.Oil filter
2.Diesel filter
3.Oil bath air cleaner with pre-cleaner and dust collector
4.12V/24V Starting motor
5.12V/24V charged generator
6.Diesel engine electrical shutdown device (only generator set)
7.Automatic belt tension unit
8.V-belt break alarm device
9.Belt guard (only for generator set)
10.4 Engine elastic supports
11.SAW Flywheel and housing
12.Oil temperature sensor and alarm switch (VDO analog signal)
13.Oil pressure sensor and alarm switch (VDO analog signal)
14.Diesel engine accelerator adjust device (only generator set)
15.Mechanical adjusting speed device
16.Diesel engine paint (gray)


912/913 series Optional configuration:
1.Absorption type exhaust silencer suitable for remote mounting
2.Spark arrestor type exhaust silencer
3.Exhaust manifold –cum-silencer (only for non-turbo charge)
4.Dry type air cleaner with restriction indicator
5.Diesel engine supports suitable for rigidly mountings
6.Gear driven hydraulic pump
7.Belt driven air compressor
8.Hydraulic oil radiator
9.Starting aid for engine starting below minus 5℃ down to minus 20℃
10. 12V/24V Diesel engine electrical adjusting speed control device
11.Mechanical shutdown lever
12.Diesel engine over speed guard device
13.All kinds of meter of diesel engine
14.Industrial power take-offs

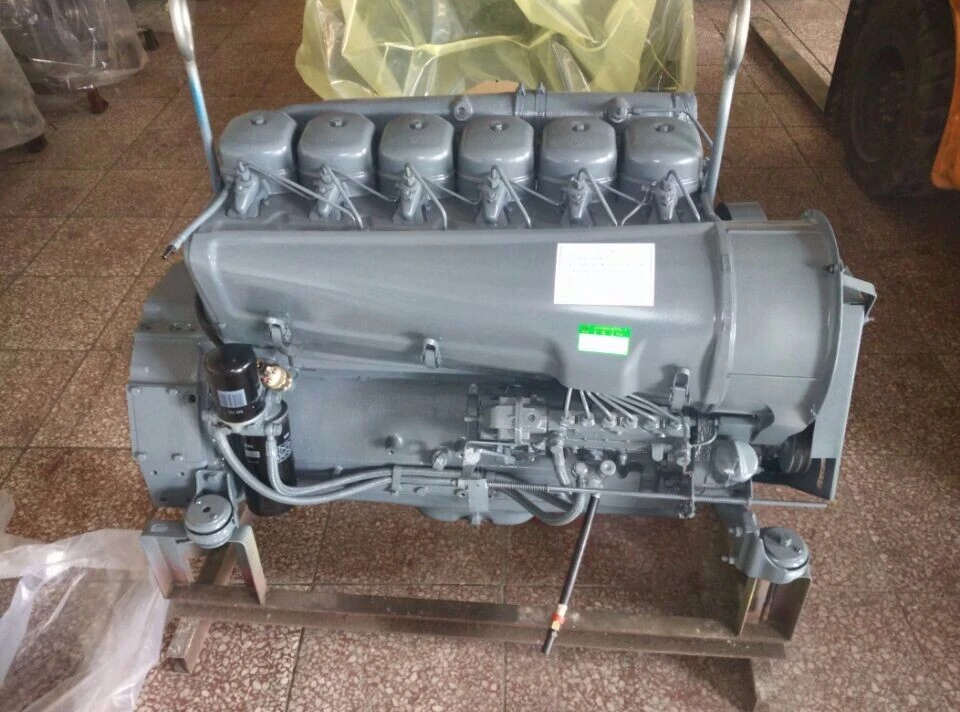

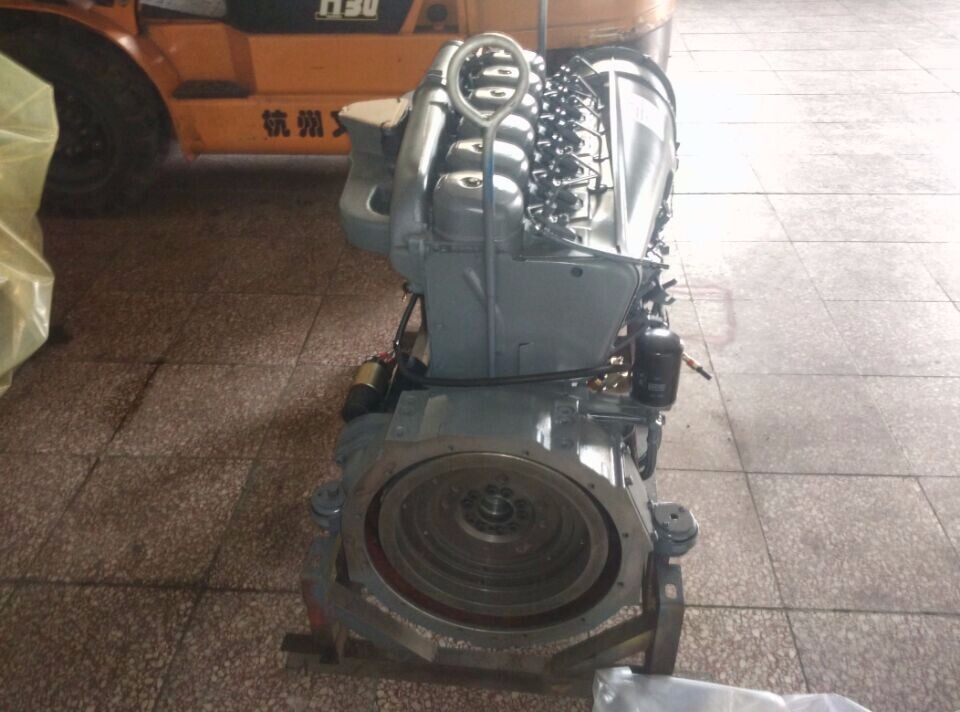

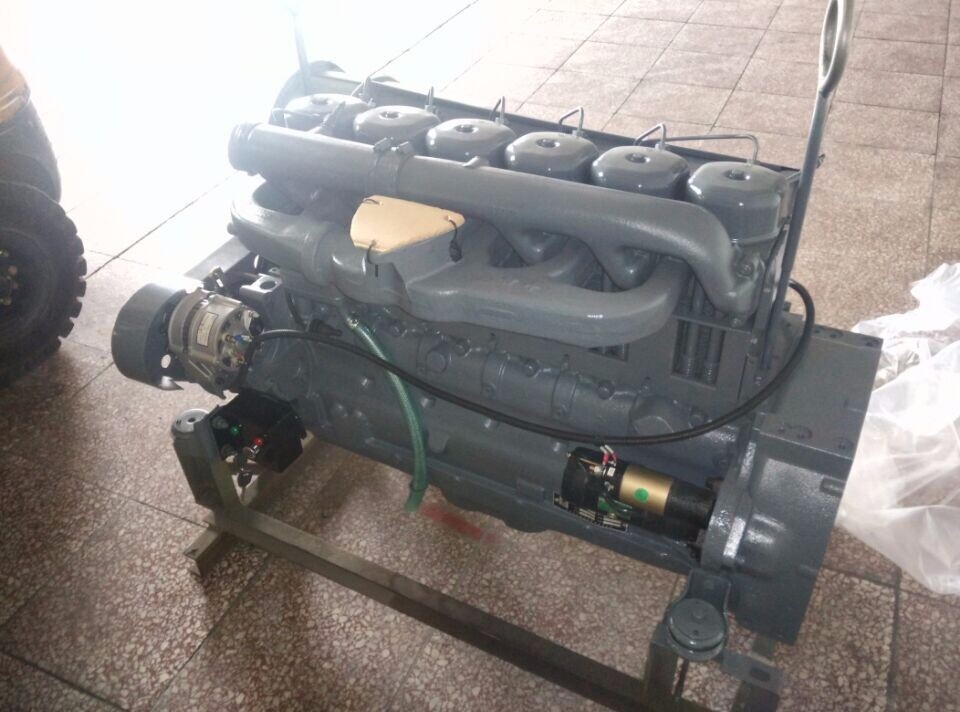

Detailed Images

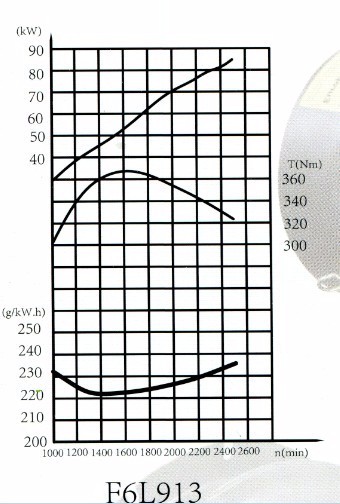

F6L913 POWER CURVE

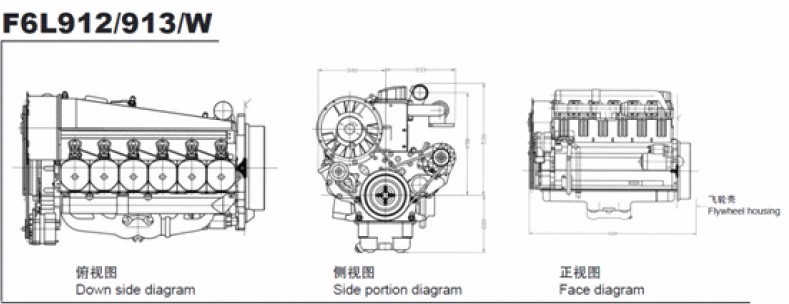

F6L913DRAWING

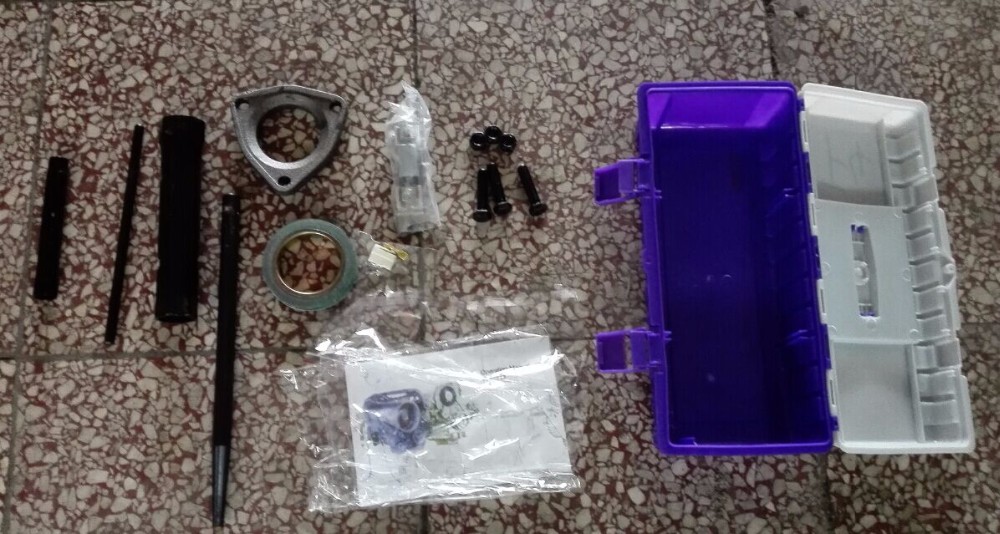

Tool Kit of deutz engine
Packing & Delivery
Packaging
Size
1400×800×1040
Weight
420kg
Packaging Details
Wooden case packing
22sets in 20GP container
OEM brand on the wooden case accepted
Our Service

1. OEM accepted
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after order is confirmed, we will inspect the products producing procedure for client, and take inspection pictures before sending out to the warehouse
