Kb186f China Diesel Engine Air Cooled Type

KB186FA
Benefits: Quick refunds on orders under US $1,000
Usage Automobile
Fuel Diesel
Model Number KB186FA
Purchase details
Shipping: Contact supplier to negotiate shipping details
Enjoy On-time Dispatch Guarantee
Returns & Refunds Eligible for refunds within 30 days of receiving products.
Quantity:
Contact Now
add to cart

Key attributes

Industry-specific attributes

DisplacementOther
Emission StandardOther
Power
Other



Other attributes

Applicable IndustriesOther
Place of Origin
China
Weight48
WarrantySpare Parts
Rated power/speedOther
Machinery Test ReportNot Available
Video outgoing-inspection
Not Available
Marketing TypeOther
Warranty of core componentsOther
Core Components
Other
Key Selling PointsOther
ConditionNew
Stroke4 Stroke
Cylinder
Single Cylinder
Cold StyleAir-cooled
StartKick Start
Brand NameKUNBAO
Dimension(L*W*H)500*470*555
After-sales Service Provided
No overseas service provided
Starting systemRecoil Satrt
ENGINE POWER8.7HP/3600RPM; 8.0HP/3000RPM
Main market
Southeast Asia, African countries
Certification
ISO



Packaging & delivery

Package Type:CARTONS PACKING Full container loading qty: 220sets


Supply Ability

Supply Ability2000 Set/Sets per Month

Product Description

Product Application

Air-cooled diesel engine manufacturing process has higher demand than water-cooled diesel engine. It is welcomed by the majority of users for it is easy to start, cost-saving and adaptable to the environment, the materials used for heat, wear and coefficient of expansion requirements are also higher.

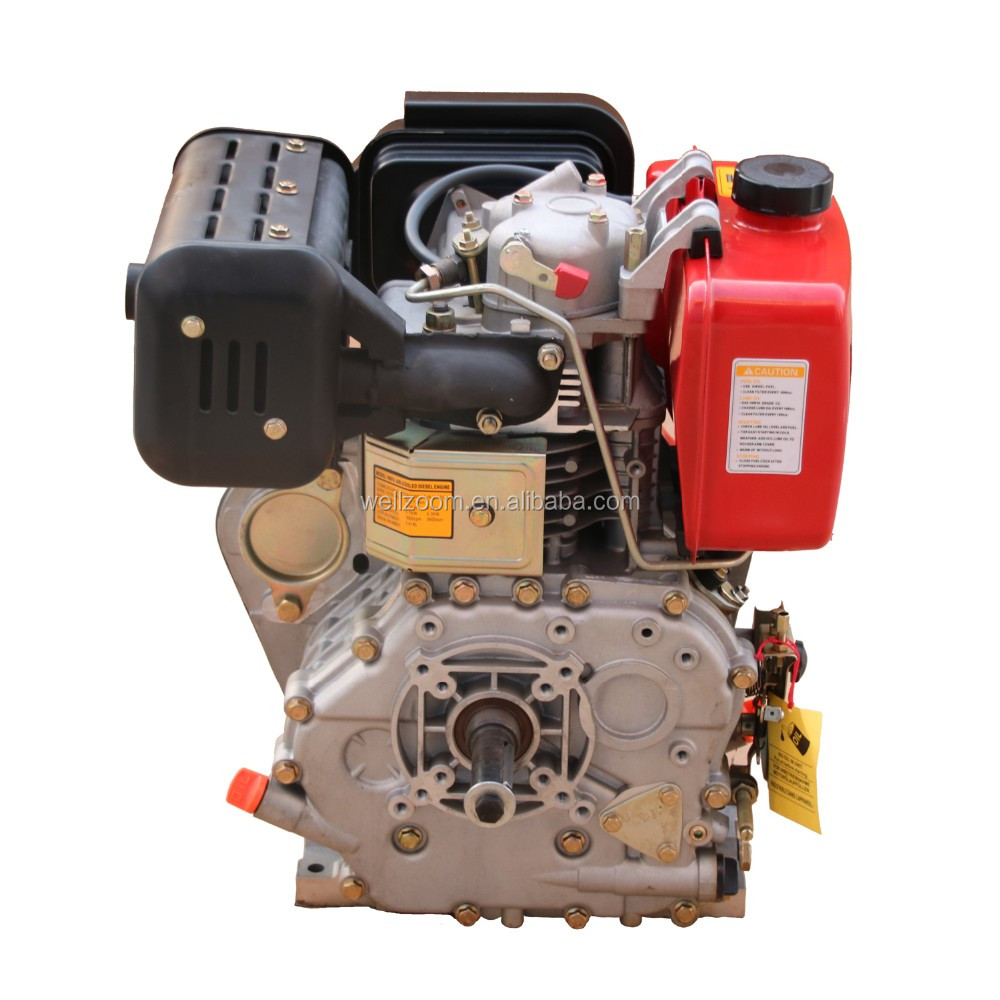

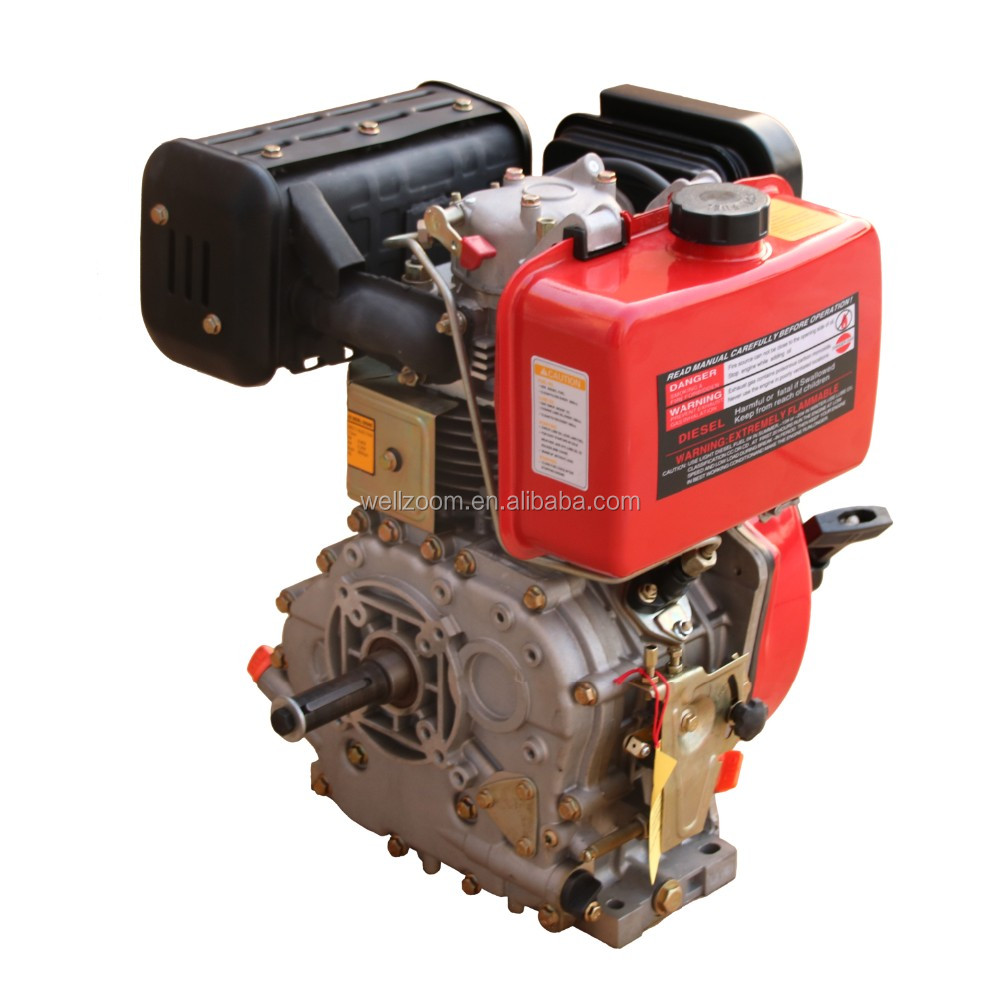

Engine Type: Single Cylinder, 4-stroke, Air-cooled, Direct injection, Diesel Engine

Bore X Stroke(mm): 86 X 70

Displacement(ml): 418

Engine Speed(rpm): 1500/1800

Compression Ratio: 19:1

Rated Output Power(kw/hp): 6.0(8.0)/3000

Rated Output Power(kw/hp): 6.5(8.7)/3600

Fuel: O# OR-10#light Diesel Oil

Fuel Tank Volume (L/gal.): 5.5(1.21)

Fuel Consumption Rate g(ml)/wk.: 280(333)

Lubrication Oil Volume L(gal.): 1.65(0.36)

Power-take-off: Crankshaft

Starting System: Recoil Or Electric

Overall Dimension (LxWxW) mm: 500 x 475 X 555

Dry Weight Kg(lbs): 48(105.6) Recoil

53(116.6) Electric

Ref.QTY/20' FCL(SETS): 220

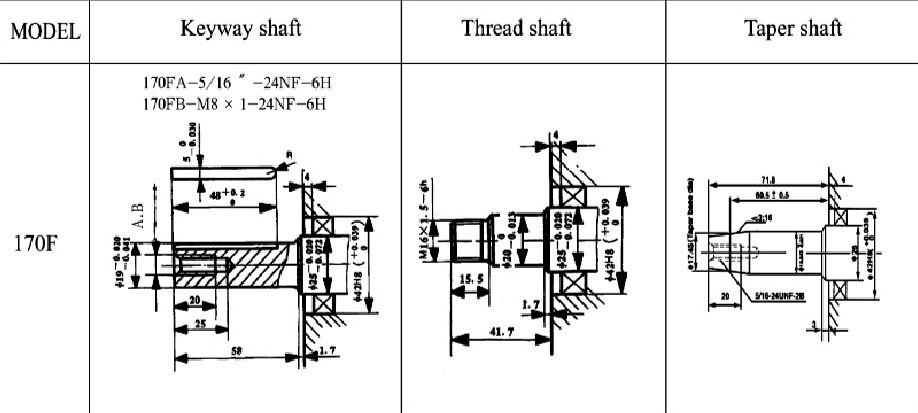

PTO Shaft Dimensions

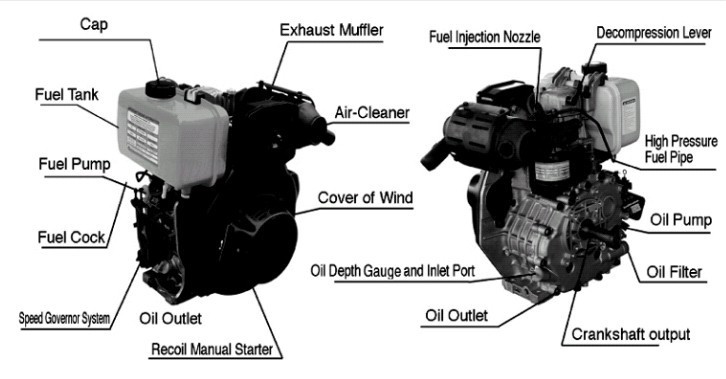

Diesel Engine Part List
