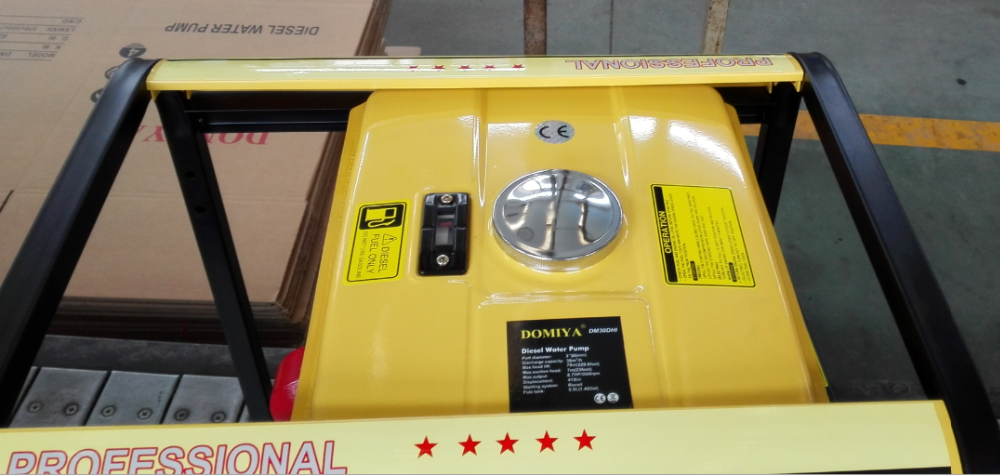

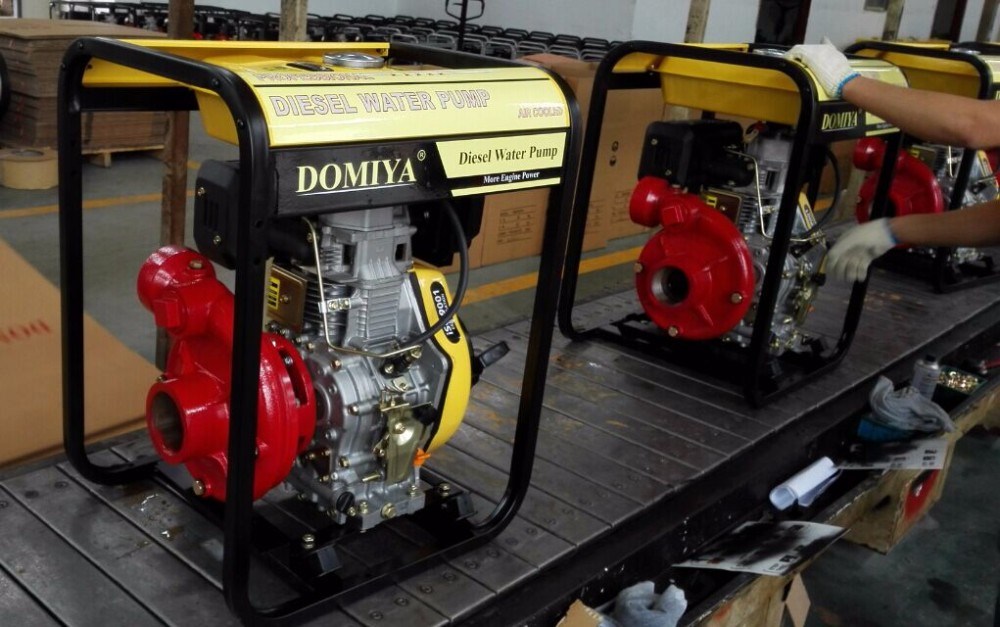

Smart Recoil Start Diesel Water Pump 3inch Pump

DOMIYA brand diesel water pump sets use advanced engines to ensure effective and economical combustion and are renowned for low noise, light vibration, light weight and small size. With aluminum alloy self-suction pump body and cast iron propeller/turbine cover, the pump is endowed with greater endurance. Using international standards of screw threads, the pump has outstanding compatibility and can be used together with various pipes.


Inlet/outlet At Size(mm/in): 80 3"

Displacement Q.max(m3/h): 60

Lift H.max (m/ft): 28(91.86)

Suction (m/ft): 7(22.97)

Speed (rpm): 3600

Engine Model: DM178F/E

Rated Power (kw/hp): 4.0(5.5)

Displacement(ml/cu.in): 296(18.06)

Starting System: RECOIL STARTER / ELECTRIC STARTER

Fuel Tank Capacity (l/gal.): 3.5(0.77)

Continuous Working Time(h): 2.5

Overall Dimension (L x W x H)(mm): 580 X 470 X 570

Dry Weight (kg/lbs.): 56(123.2)

Ref.QTY/20' FCL(SETS): 144


ADVANTAGES

1. Skilled technicians and professional engineers.

2. Hand start(Recoil)/Key start with battery is optional

3. Muffler/Silencer with low noise

4. Every spart part supplier is chosen strictly based on excellent quality.

5. Strict test procedure, quality carton package with foam.

6. Warranty: Running for one year.

7. Standard operation / technical maintenance /manual/tool kits.

8. Any color can be offered.

9. OEM service can be available for full container quantity order.


Optional Configurations for diesel water pump:

1. Big fuel tank

Optional Configurations for battery:

1. 12V-17ah 2. 12V-22ah 3. 12V-30ah 4. 12V-36ah
