Intelligent high pressure pump with diesel engine 3" KB80DHI

KB80DHI

Benefits: Quick refunds on orders under US $1,000
Type Self-Priming Sewage & Trash Pumps
Maximum Head 70M
Maximum Flow Rate 38M3/H
Lead time:
Quantity (sets) 1 - 5 6 - 99 > 99
Lead time (days) 15 30 To be negotiated
Customization: Customized logo(Min. order 99 sets)
Customized packaging(Min. order 99 sets)
Purchase details
Shipping: Contact supplier to negotiate shipping details
Enjoy On-time Dispatch Guarantee
Returns & Refunds Eligible for refunds within 30 days of receiving products.

Quantity:

Contact Now

add to cart

Key attributes

Industry-specific attributes

Application	Other, Irrigation and Agriculture, Mining industry
Pressure	normal pressure
Voltage	normal pressure

Other attributes

Customized support	OEM
Place of Origin	Shanghai, China
Power Source	Diesel Engine
Structure	PISTON PUMP
Brand Name	KUNBAO or OEM
Model Number	KB80DHI
Outlet Size	3"
Usage	Water
Pressure	High Pressure
Fuel	Diesel
Standard or Nonstandard	Standard
Power	Hydraulic
Theory	Centrifugal Pump
BORE SIZE	3 INCH
Matched power	186F/E
Packing	Carton Packing
Application	irrigation

Packaging & delivery

Package Type:

carton packingn

Supply Ability

200 Set/Sets per Month

Product details

Product Description

DOMIYA brand high pressure diesel water pump sets use advanced engines to ensure effective and economical combustion and are renowned for low noise, light vibration, light weight and small size. With aluminum alloy self-suction pump body and cast iron propeller/turbine cover, the pump is endowed with greater endurance. Using international standards of screw threads, the pump has outstanding compatibility and can be used together with various pipes.

Inlet/outlet At Size(mm/in): 80 3.15

Displacement Q.max(m3/h): 38

Lift H.max (m/ft): 70(229.64)

Suction (m/ft): 7(22.97)

Speed (rpm): 3600

Engine Model: DM186F/E

Rated Power (kw/hp): 6.3(8.5)

Displacement(ml/cu.in): 406(24.78)

Starting System: RECOIL STARTER / ELECTRIC STARTER

Fuel Tank Capacity (l/gal.): 5.5(1.21)

Continuous Working Time(h): 2.5

Overall Dimension (L x W x H)(mm): 665 X 490 X 620

Dry Weight (kg/lbs.): 64(140.8)

Ref.QTY/20' FCL(SETS): 99

ADVANTAGES

1. With cast iron pump.

2. Hand start(Recoil)/Key start with battery is optional

3. Muffler/Silencer with low noise

4. Every spart part supplier is chosen strictly based on excellent quality.

5. Strict test procedure, quality carton package with foam.

6. Warranty: Running for one year.

7. Standard operation / technical maintenance /manual/tool kits.

8. Any color can be offered.

9. OEM service can be available for full container quantity order.

Optional Configurations for diesel water pump:

1. Big fuel tank

Optional Configurations for battery:

1. 12V-17ah 2. 12V-22ah 3. 12V-30ah 4. 12V-36ah

Product pictures

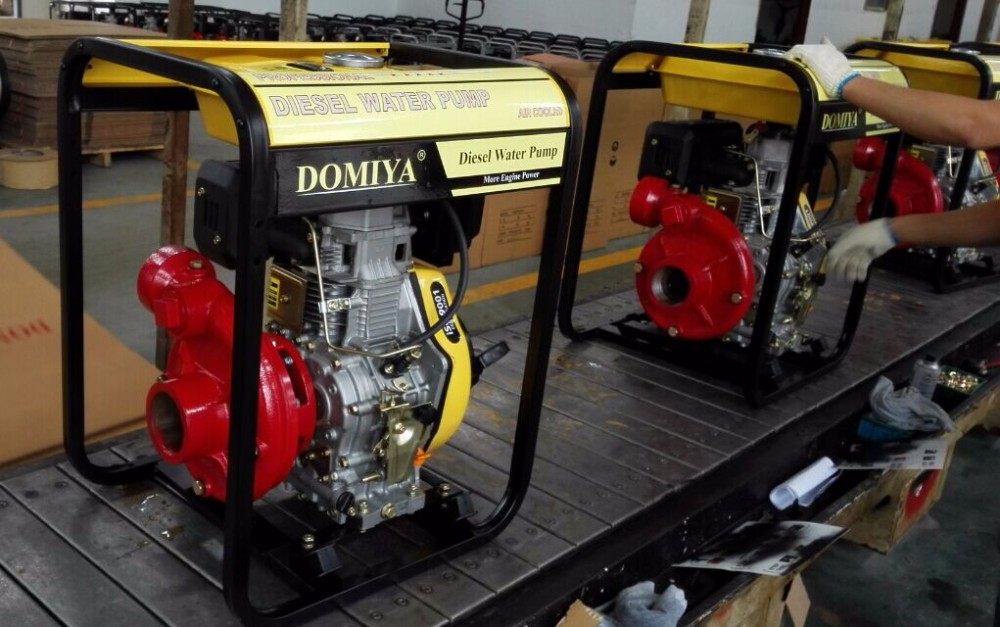

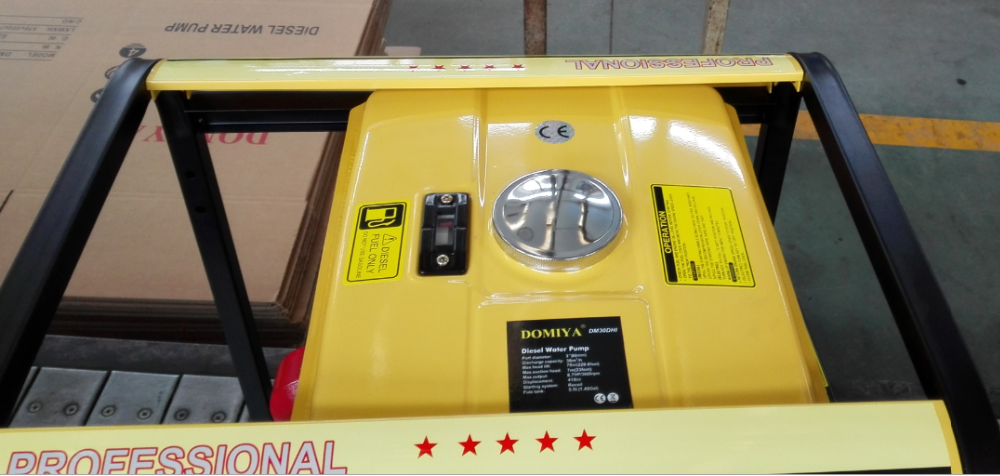

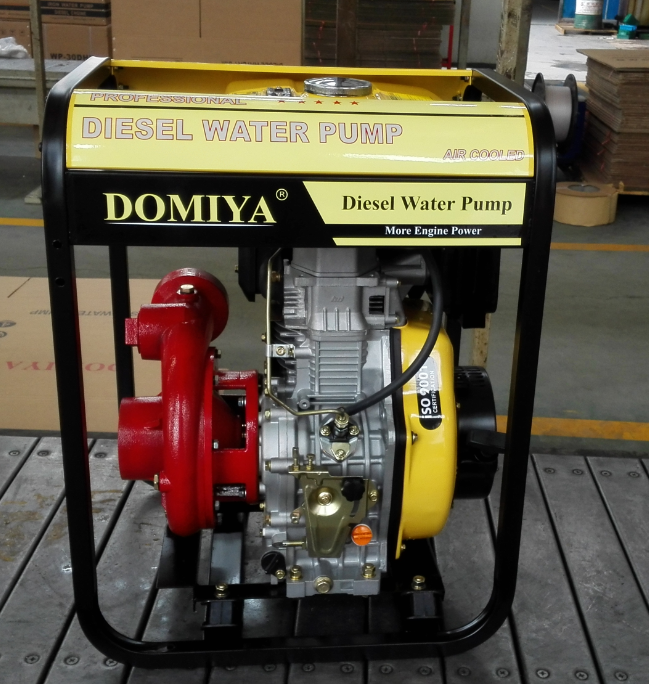

Detailed Image

our company

About Wellzoom

Shanghai Wellzoom International Trade Co., Ltd. Is a professional trade company established in 2003. We are specialized in the import and export of mechanical and electric products. We have particular strength in products such as general machinery (gasoline/diesel engine, gasoline/diesel generator, electric motor, air compressor, welding machine etc. ), agricultural machinery (oil and rice processing machinery, water pumps and their accessories etc), hardware (electric tools, hand tools etc.), auto and motorcycle parts, bearing and transmission, etc.

We have a shareholding factory who is specialized in small power generators, engines, power water pumps and some other small power installations. We have our own brands, such as"DOMIYA","KUNBAO","OHATSU"and we could also supply OEM services to our clients. Our products have attained CE, EPA, SONCAP certificates and have been exported to more than 20 countries and areas in South Africa, Africa, Middle East, Europe and Latin America.
